Most people walk past a playground, a wooden fence, or a park bench without noticing the small, dome-headed bolt holding it all together. That's a carriage bolt — and its quiet confidence is entirely on purpose.
It does one thing exceptionally well: it fastens two pieces of material together securely, cleanly, and without any way for someone to undo it from the "wrong" side. That combination of simplicity and tamper resistance makes it one of the most trusted fasteners in construction, woodworking, and outdoor hardware.
A Brief History of the Carriage Bolt
The name is not a coincidence. Carriage bolts were literally built for carriages.
Horse-drawn coaches travelled on deeply rutted, unpaved roads. The constant vibration shook standard nuts and bolts loose — occasionally with catastrophic results. A wheel falling off at speed was not a minor inconvenience.
The solution came from a Connecticut blacksmith. In 1818, Micah Rugg of Marion, Southington Township, Connecticut developed the carriage bolt fastener specifically to survive this constant vibration and keep carriage components locked together.
Source: Old West Iron; HR FastenerThe key innovation was the square shoulder beneath the head. It gripped the surrounding wood so tightly that no tool could spin it from one side. You could only remove the bolt by accessing the nut — which was exactly the point.

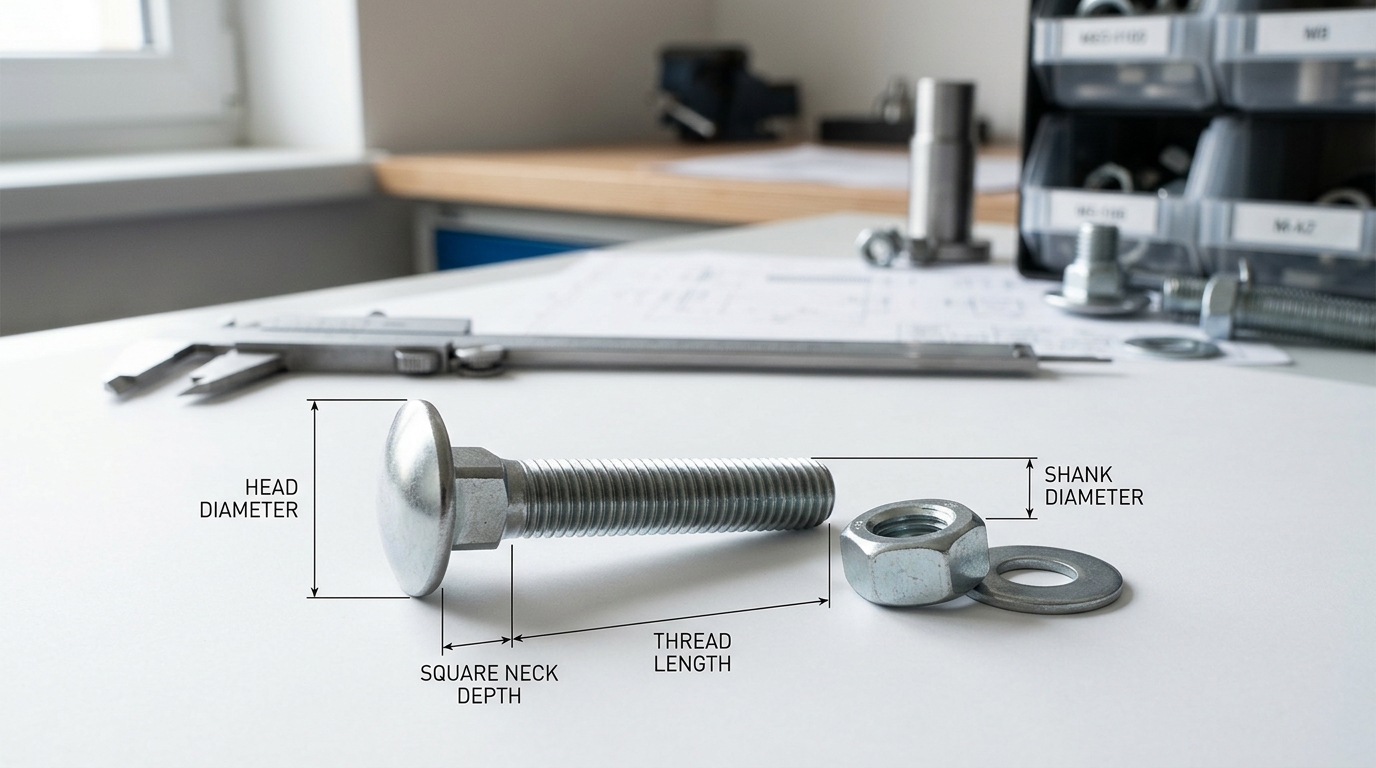

Anatomy of a Carriage Bolt: 3 Key Parts
Understanding a carriage bolt is easier once you see it in three sections.
- The dome head — Smooth, rounded, and flush-friendly. It sits on the surface of the material with no exposed drive slot. That's not a manufacturing oversight; it's deliberate tamper resistance.
- The square neck (or shoulder) — Directly beneath the head. This square section is what gives the bolt its signature self-locking ability. When pushed into wood, it bites into the fibres. When inserted into a pre-drilled square hole in metal, it locks into position.
- The threaded shank — The long cylindrical body, partially or fully threaded, onto which a nut and washer are tightened from the opposite side.
How Does a Carriage Bolt Actually Work?
Here's what happens during installation — step by step:
- Drill a round hole through your material (wood, metal, or both).
- Insert the carriage bolt from one side.
- As you push it through, the square neck engages with the surrounding material.
- In wood: the square section presses into the softer fibres and locks in place.
- In metal: you need a pre-punched square hole that matches the bolt neck dimensions.
- Thread a washer and nut onto the exposed end.
- Tighten the nut — the bolt won't spin because the square neck holds it.
The result? You get a tight, clean connection with zero tool requirement on the head side. No hex socket, no Torx bit, no screwdriver. Just a spanner on the nut.
Types of Carriage Bolts
Not all carriage bolts are identical. The neck design, head style, and length vary based on application.
| Type | Neck Style | Best For | Notes |
|---|---|---|---|
| Round Head Square Neck | Square | Wood-to-wood, wood-to-metal | Most common; standard choice for construction |
| Short Neck Carriage Bolt | Square (shorter) | Thin materials | Less grip depth; suits thinner panels |
| Ribbed Neck Carriage Bolt | Ribbed (ridges) | Metal applications | Better rotation resistance without a square hole |
| Fin Neck (Silo Bolt) | Four fins | Outdoor / agricultural use | Often plastic-coated head; great for silos and outdoor structures |
| Flat Head Square Neck | Square, countersunk head | Flush surface applications | Head sits level with material surface |
| Timber / Mushroom Head Bolt | Wider dome head | Wood-to-wood only (large structures) | Related, not identical — wider head distributes load over larger surface |
Materials: What Are Carriage Bolts Made From?
The material affects strength, corrosion resistance, and cost. Here are the main options:
- Low-carbon steel — Affordable, widely available. Good for indoor or dry environments. Susceptible to rust if left uncoated.
- Galvanised steel — Zinc-coated for weather resistance. The standard choice for outdoor wood structures like decks and fences.
- Stainless steel (SS 304 / SS 316) — Excellent corrosion resistance. Preferred for marine environments, coastal buildings, and food-grade applications. SS 316 offers better salt-water resistance than SS 304.
- Brass — Decorative and non-magnetic. Used in marine and electrical applications where appearance matters.
- Hot-dipped galvanised (HDG) — Thicker zinc coating than electroplated. Better long-term protection in humid or wet conditions.
Carriage Bolt Grades & Strength Standards
Grades define the bolt's tensile strength — how hard it is to pull apart under load.
| Grade | Material | Min. Tensile Strength | Typical Use |
|---|---|---|---|
| Grade 2 | Low-carbon steel | 74,000 psi | Light-duty; furniture, general joinery |
| Grade 5 | Medium-carbon steel | 120,000 psi | Structural construction, decking |
| Grade 8 | Alloy steel (heat-treated) | 150,000 psi | Heavy industrial, machinery |
| Stainless (18-8) | SS 304 stainless | 65,000–150,000 psi | Marine, outdoor, corrosive environments |
Carriage bolts follow standards set by ASME B18.5, ISO, and ANSI. When in doubt, check the ASME specification for your diameter and application.
Common Carriage Bolt Sizes
Sizes are defined by three measurements: diameter, length, and thread pitch (TPI).
| Diameter (inches) | Common Lengths | Coarse Thread (TPI) | Fine Thread (TPI) |
|---|---|---|---|
| ¼" | ½" – 4" | 20 | 28 |
| 5/16" | ¾" – 5" | 18 | 24 |
| ⅜" | 1" – 6" | 16 | 24 |
| ½" | 1" – 12" | 13 | 20 |
| ⅝" | 1½" – 12" | 11 | 18 |
| ¾" | 2" – 16" | 10 | 16 |
Length is always measured from the bearing face (underneath the dome head) to the tip of the threaded end. Not from the top of the dome — a distinction that catches beginners out almost every time.
Where Are Carriage Bolts Used Most?
Carriage bolts show up across construction, furniture, security hardware, and outdoor equipment. Here's a rough breakdown of primary industries and applications:
Chart shows relative frequency — not absolute market share data. Based on reported industry applications from Fastener Mart, AFT Fasteners, and Monroe Engineering.
Specific Applications to Know
- Wood decking and garden structures — Galvanised carriage bolts are the standard for outdoor deck frames and pergolas. They resist moisture and hold heavy lumber together.
- Chain-link fencing — The smooth head sits flush on the visible side. The nut goes on the secure (inside) face. Tamper-resistant by design.
- Playground and park furniture — Safety standards in many countries require tamper-resistant fixings on public equipment. Carriage bolts satisfy that requirement naturally.
- Security hardware — Locks and hinges that must only be removable from one authorised side. Wikipedia's entry on carriage bolts specifically highlights this application: the smooth head resists gripping from the insecure side.
- Marine and bridge construction — Stainless or hot-dipped galvanised variants handle salt air and constant moisture.
- Furniture assembly — Benches, swing sets, and rustic furniture all use carriage bolts for a clean, snag-free finish.
Carriage Bolt vs Lag Bolt: What's the Difference?
These two get confused constantly. They're both used in wood construction, but they work very differently.
| Feature | Carriage Bolt | Lag Bolt |
|---|---|---|
| Head shape | Smooth dome (no drive slot) | Hex or square head (requires wrench) |
| How it fastens | Nut & washer on the opposite end | Threads directly into wood — no nut needed |
| Installation | Needs through-hole; one-sided tightening | Screwed in from one side only |
| Tamper resistance | High | Low |
| Removability | Removable (with nut access) | More permanent; harder to remove cleanly |
| Best for | Through-connections, security, outdoor furniture | Structural fastening into wood (beams, ledger boards) |
| Typical finish | Clean, flush surface on head side | Exposed hex head |
If you need a clean exterior surface and tamper resistance, use a carriage bolt. If you need to fasten deep into solid timber without access to the back, a lag bolt wins.
How to Install a Carriage Bolt: Step-by-Step
- Choose the right size. Match the bolt diameter to your material thickness. A general rule: bolt length should be at least 1.5× the combined thickness of the materials being joined.
- Drill a clean round hole. The hole should match the bolt diameter exactly — not larger. A loose hole lets the square neck spin instead of gripping.
- Insert the bolt from the outside (or visible) face. Push firmly until the dome head sits flush.
- Tap lightly if needed. In hardwood, a mallet tap helps the square neck seat properly into the fibres.
- Add a washer, then the nut. The washer distributes load across the surface and prevents the nut pulling through.
- Tighten with a spanner or socket wrench. The bolt should hold without spinning. If it spins, the hole is too large — stop and reassess.
- Don't overtighten. Use a calibrated torque wrench for structural applications. Refer to the manufacturer's torque chart for your grade and diameter.
Carriage Bolt Pros and Cons
| ✅ Advantages | ❌ Limitations |
|---|---|
| Tamper-resistant smooth head | Requires access to the opposite side for the nut |
| No tool needed on the head during tightening | Hole must be drilled accurately — no margin for error |
| Clean, snag-free surface finish | Not suitable where only one-side access exists |
| Self-locking in wood — no rotation under vibration | Metal applications need a pre-punched square hole |
| Available in multiple materials and grades | Stainless versions cost significantly more than carbon steel |
| Widely standardised (ASME, ISO, ANSI) | Overtightening can strip the square neck in soft wood |
Frequently Asked Questions
Yes — completely interchangeable terms. "Coach bolt" is more common in the UK and Australia. "Carriage bolt" is used in North America. Same design, same function, different regional name.
Yes, but with one condition. You need a pre-punched or drilled square hole in the metal for the neck to engage. Without it, the bolt will rotate freely and won't self-lock. Ribbed-neck carriage bolts offer an alternative — their ridges grip round metal holes better than a plain square neck.
Source: Neelkamal FastenersNot always. Standard carriage bolts are partially threaded — the upper shank is smooth, and threading starts partway down. Fully threaded versions also exist and are noted as such in specifications. Always check thread length before ordering.
Source: HR FastenerIn the US, the primary standard is ASME B18.5. This covers round head square neck carriage bolts for the most common sizes. International production also follows ISO and ANSI standards.
Source: AFT Fasteners — ASME B18.5For most outdoor wood applications, hot-dipped galvanised (HDG) carriage bolts are the standard recommendation. For marine or coastal environments, go with stainless steel SS 316 for the best salt-water corrosion resistance.
Technically optional, but practically essential. A washer under the nut distributes the clamping load over a larger area. Without it, the nut can pull through soft timber under load — especially over time.
Summary: What Makes a Carriage Bolt Special?
The carriage bolt is a two-century-old solution to a real engineering problem: how do you fasten materials securely when you only want one side to be accessible?
Its answer — a dome head with a square shoulder — is elegantly simple. It needs no driver on the head side. It resists tampering. It works in wood without any extra hardware. And it cleans up beautifully in finished surfaces.
Here's what to remember:
- Design: Dome head + square neck + threaded shank
- Self-locking: Square neck bites into wood fibres — no spinning
- Invented: 1818, by Micah Rugg, Connecticut
- Also called: Coach bolt, round head square neck bolt
- Governed by: ASME B18.5, ISO, ANSI
- Best outdoor choice: Hot-dipped galvanised or SS 316 stainless
- Used in: Decks, fences, playground equipment, security hardware, marine structures
- Key difference from lag bolt: Needs through-hole + nut; lag bolt threads directly into wood
Next time you're building something that needs to stay built — and stay tamper-proof — you'll know exactly which bolt to reach for.
Sources used in this article include: Wikipedia, AFT Fasteners, Monroe Engineering, Old West Iron, Fasteners Plus, BE-CU, Fixabolt, Neelkamal Fasteners, HR Fastener. All external links marked nofollow.
